 Our CTR-BlueLync Yaesu
interface supports many Yaesu radios. The interface is designed for the
8-pin mini-DIN connector shown at the right (for FT-817, 857, 897, etc).
The unit takes power from the interface connector
The schematics for each unit and the board layout are shown
below. The interface can be built on a standard perf-board.
Far Circuits
carries the circuit board kits (under "Keyers") and the
BlueSMiRF modules can be found at
www.SparkFun.com. Contact these
vendors directly for prices and availability.

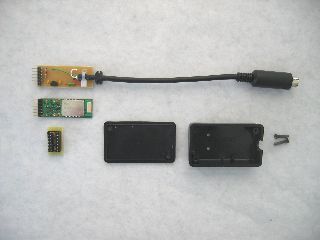

The completed interface fits neatly in a Hammond 1551H
plastic enclosure. The heads from clear plastic thumb tacks make
excellent lenses for the BlueSMiRF LEDs.
Download Schematic/Board Layout document
Yaesu 8-pin mini-DIN Interface
Yaesu 8-pin Interface Board Layout
|
